This is the Aircraft Mechanics Electric Retracts 25-46 Size Main Retract & Leg Only

These self-contained units are powered from your model’s receiver and do not require separate servos.

(Mains and Nose retracts sold separately)

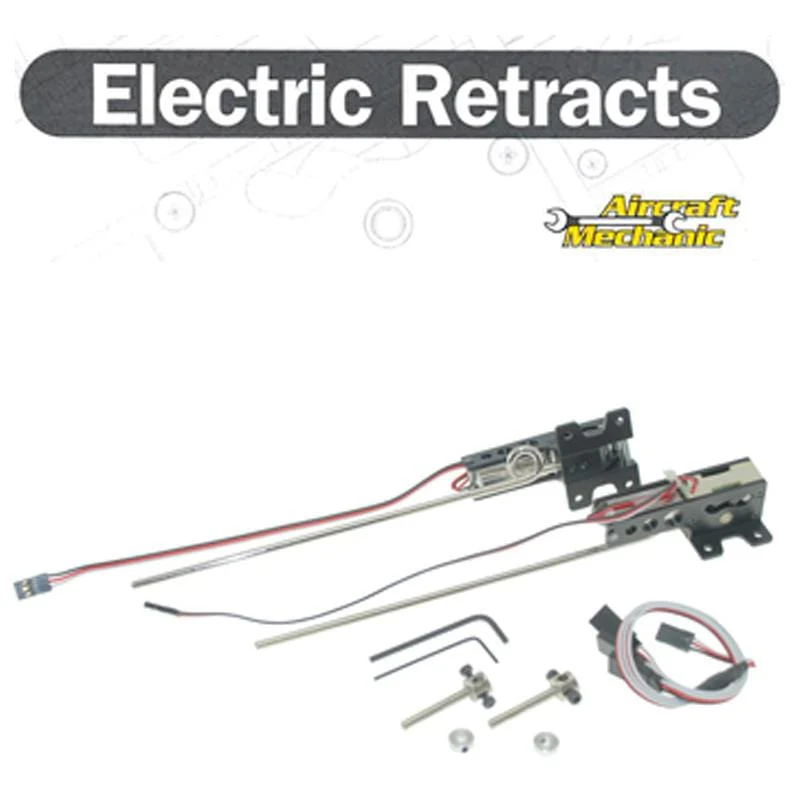

The mains retracts are supplied with coiled wire struts installed, plus adjustable axles, wheel collars, Allen wrenches and a 3-into-1 wire harness.

Specifications (Subject to change or improvement without notice.)

• Current draw at Idle 5mA
• Operating 900mA (maximum)
• Pulse width trigger points: Down 1.331ms, Up 1.690ms
• Operation with FM and DSM
• FM 22ms frame rate, 5V signal
• DSM 20ms frame rate, 3.3V signal
• Sequence time: @ 4.8V 2.75sec, @ 6.0V 2.50sec, @ 7.4V 2.25sec
• Operating voltage range: 4.8 – 7.4V
• Aircraft weight: 2.25kg – 4.30kg
• Unit weight: Main gear 79.5g each
