Freewing 30g Coreless Metal Gear Reverse Servo with 100mm Lead [MD31303R-100]**
This is the Freewing 30g Coreless Metal Gear Reverse Servo with 100mm Lead [MD31303R-100]
This servo is used for various 80mm/90mm Freewing EDF jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital metal gear servo perfect for larger-sized EDF jets

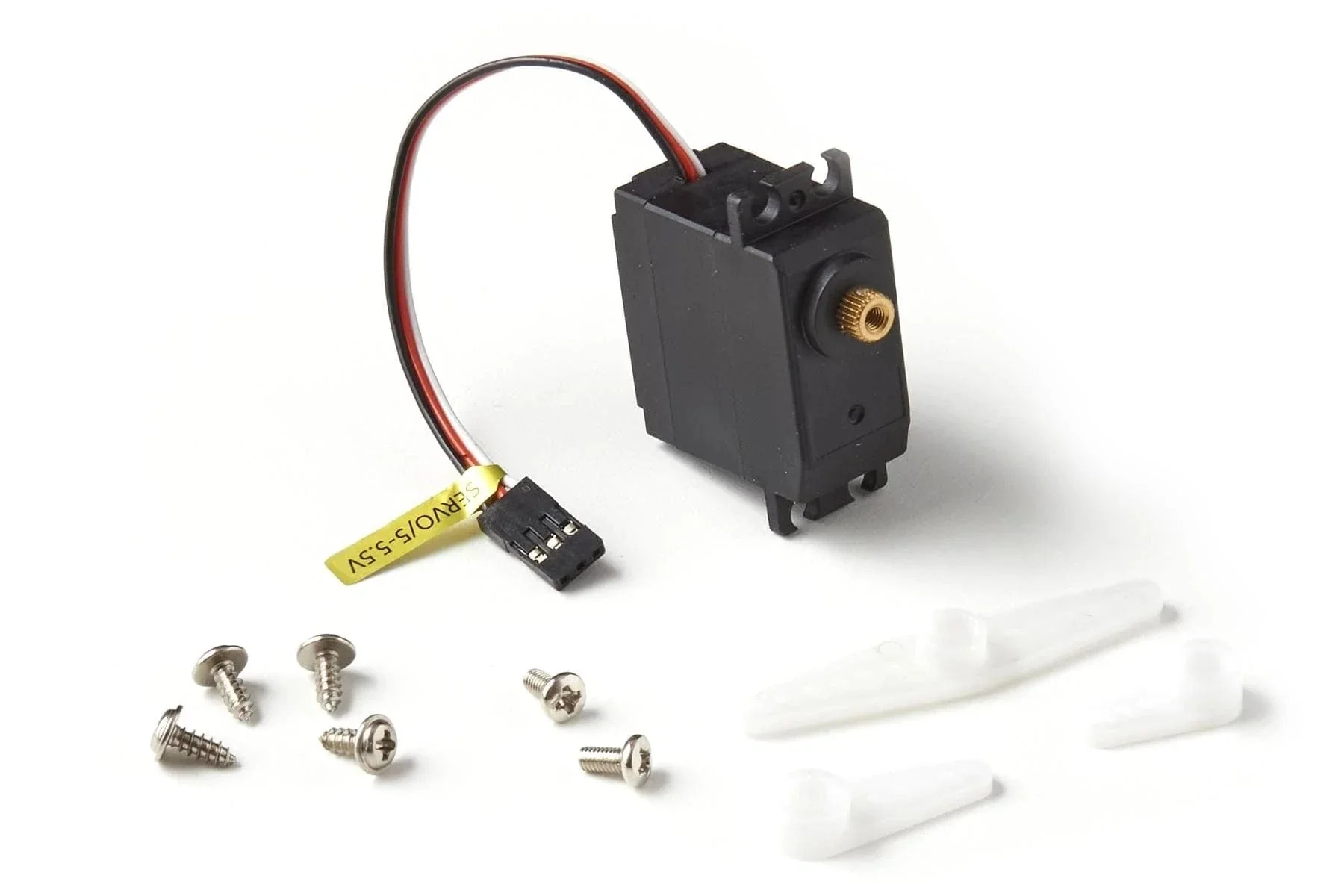

Includes:
- Freewing 30g Coreless Metal Gear Reverse Servo with 100mm (3") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
|
Servo Class |
Mini |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Reverse |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.11 sec @ 60 deg |
|
Speed (6V) |
0.09 sec @ 60 deg |
|
Torque (4.8V) |
4.0 kg/cm (55.54 oz/in) |
|
Torque (6V) |
4.5 kg/cm (62.49 oz/in) |
|
Current Draw at Idle |
20mA |
|
Current Draw Operating (No Load) |
150mA |
|
Dimensions (L x W x H) |
33 x 17.4 x 32.3mm |
|
Weight |
36g (1.26oz) |
|
Lead Length |
100mm |
