Freewing MD31091R-500 9G Plastic Servo Reverse L=500**
This is the Freewing MD31091R-500 9G Plastic Servo Reverse L=500
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital servo perfect for mid-sized to large EDF jets

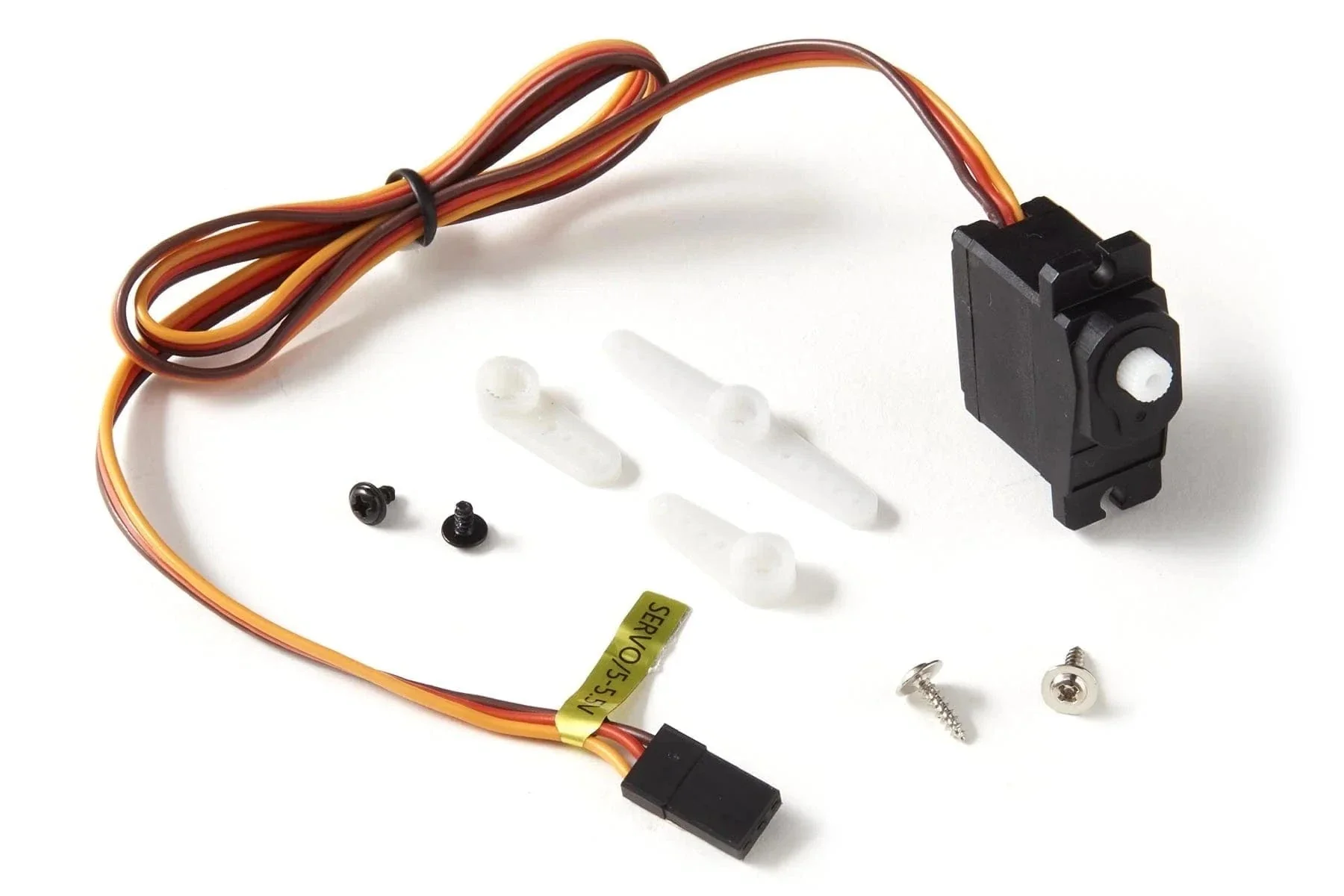

Includes:
- Freewing 9g digital servo with 500mm (19.6") lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
| Servo Class | 9g |
| Servo Type | Digital |
| Gear Material | Plastic / Nylon |
| Direction | Standard / Normal |
| Operating Voltage Range | 4.8V to 6V |
| Speed (4.8V) | 0.12 sec @ 60 deg |
| Speed (6V) | 0.10 sec @ 60 deg |
| Torque (4.8V) | 1.2 kg/cm (16.66 oz/in) |
| Torque (6V) | 1.5 kg/cm (20.83 oz/in) |
| Current Draw at Idle | 10mA |
| Current Draw Operating (No Load) | 80mA |
| Dimensions (L x W x H) | 23.5 x 12.2 x 26.4mm |
| Weight | 9g (.31oz) |
| Lead Length | 500mm |
$2.85
Original: $8.13
-65%Freewing MD31091R-500 9G Plastic Servo Reverse L=500**—
$8.13
$2.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is the Freewing MD31091R-500 9G Plastic Servo Reverse L=500
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 9g digital servo with 500mm (19.6") lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
| Servo Class | 9g |
| Servo Type | Digital |
| Gear Material | Plastic / Nylon |
| Direction | Standard / Normal |
| Operating Voltage Range | 4.8V to 6V |
| Speed (4.8V) | 0.12 sec @ 60 deg |
| Speed (6V) | 0.10 sec @ 60 deg |
| Torque (4.8V) | 1.2 kg/cm (16.66 oz/in) |
| Torque (6V) | 1.5 kg/cm (20.83 oz/in) |
| Current Draw at Idle | 10mA |
| Current Draw Operating (No Load) | 80mA |
| Dimensions (L x W x H) | 23.5 x 12.2 x 26.4mm |
| Weight | 9g (.31oz) |
| Lead Length | 500mm |
