Rechargeable battery pack included!

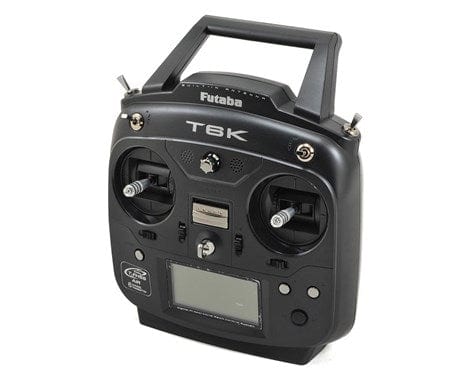

The Futaba 6K 2.4GHz S-FHSS/T-FHSS Radio System is one of the most feature packed transmitters in its price range. Telemetry sensors to monitor critical flight data, S.Bus and S.Bus2 servo compatibility, with setting functions that can be programmed directly from the transmitter. Ergonomic controls are within easy reach, and the menu navigation is simple. When you consider other features like 30 model memory, a backlit 128x64 DOT LCD screen and updateable software, it's easy to see why the 6K is a lot of radio for the money.

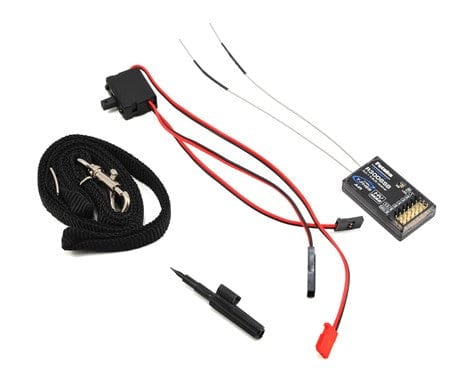

The R3006SB receiver can use S.Bus as the main link/communication to the servos or a combination of S.Bus and the conventional outputs together. It features 6 standard PWM outputs in addition to S.Bus and S.Bus-2 outputs.Features bi-directional communication with a T-FHSS Air Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port with an impressive array of telemetry sensors may be utilized.

System Features:
S-FHSS/T-FHSS selectable
Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
Built-in antenna
S.Bus/S.Bus2 servo setting functions programmable through the transmitter
Preset vibration alarms
30 model memory
8-character model/user naming
Programmable mixes for airplanes, helicopters, gliders and multi-rotors
Digital trims with variable step settings
Adjustable stick length and tension
Changeable switch/VR position and AUX channel function
Throttle position warning
Backlit 128x64 DOT LCD screen with adjustable display contrast
Software updateable through the CIU-2
Screen Lock
Earphone/S.Bus/Trainer jacks
Assignable switches (three 3-position, one 2-position)
Range Check
Program navigation bay with jog dial, +/- pads and end pad
Data reset
Model copy
Selectable model type
Fail Safe
End Points
Trim/Trim Resets/Trim Steps
Sub Trim
Servo Reversing
Parameter functions
Servo monitor/Test
Wireless model data transfer
Timer-System and Model (Up/Down)
Trainer system

Airplane Functions:
Wing Type (5-wing, 2-tail)
Throttle Cut
Dual Rate/Expo
Throttle Curve
Idle down
Gyro
Aileron differential
V-Tail
Camber
Air Brake
Elevator-to-Flap mixing
Flap-to-Elevator mixing
Elevon mixing

Specifications:

• Transmitter:

Type: 2-stick, 6-channel, T-FHSS/S-FHSS selectable

• R3006SB Receiver:

Model: R3006SB 2.4GHz T-FHSS S.Bus
Type: Full-range flight receiver
Modes: S-FHSS or T-FHSS
Features: bi-directional communication with a T-FHSS transmitter to utilize an array of telemetry sensors, S.Bus and S.Bus2 ports, along with 6 standard PWM outputs
Voltage Input: 4.8V-7.4V
Dimensions: 1.7 x 0.98 x 0.35 in (43 x 25 x 8.8 mm)
Weight: 0.3 oz (8.5 g)

Battery Charger NOT Included
