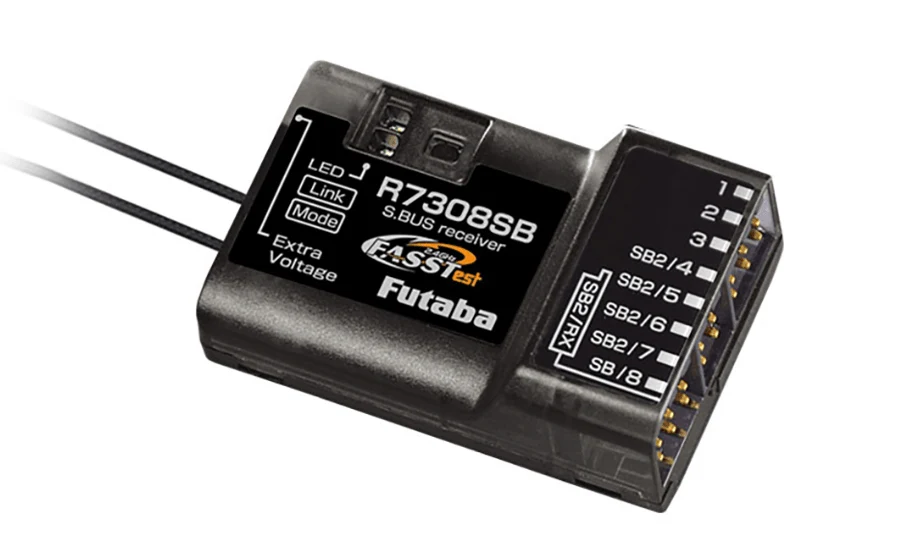

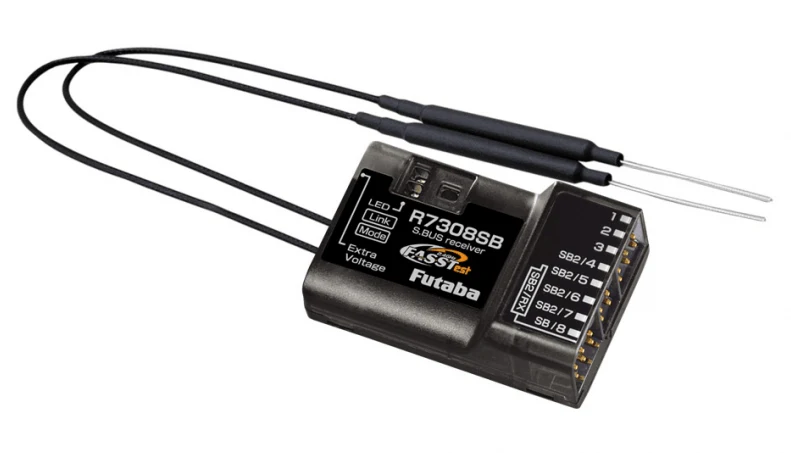

Futaba R7308SB Receiver 2.4G S-Bus HV FASSTest

The R7308SB Receiver is a high-quality product from Futaba, a leading brand in the field of radio control systems. This receiver is designed to provide reliable and efficient communication between your transmitter and model, ensuring a smooth and enjoyable experience. It is equipped with the latest FASSTest Bi-Directional Communication System, which allows for a faster and more secure connection. The receiver also features an S.Bus/S.Bus2 port and 8 channels for conventional system receivers.

The R7308SB is designed with the Dual Rx Link system, which enables a second FASSTest receiver to be connected via the SBUS2 port, providing redundancy and ensuring a stable connection. The receiver has a compact size of 24.9 mm x 38.8 mm x 14.3 mm (0.98 in x 1.53 in x 0.56 in) and a weight of 11.0 g (0.39 oz), making it easy to install and suitable for a variety of models.

The receiver has a wide voltage range of 3.7 V to 7.4 V, with a voltage range of 3.5 V to 8.4 V. It also has an extra voltage port that can handle up to 70 V DC, providing flexibility and convenience for different power requirements. With its advanced features and reliable performance, the Futaba R7308SB Receiver is a must-have for any RC enthusiast.

SIZE:
24.9 mm x 38.8 mm x 14.3 mm
0.98 in x 1.53 in x 0.56 in

WEIGHT:
11.0 g
0.39 oz

POWER REQUIREMENTS:
3.7 V to 7.4 V (Voltage Range: 3.5 V to 8.4 V)

EXTRA VOLTAGE PORT:
0 ~ 70 V DC
