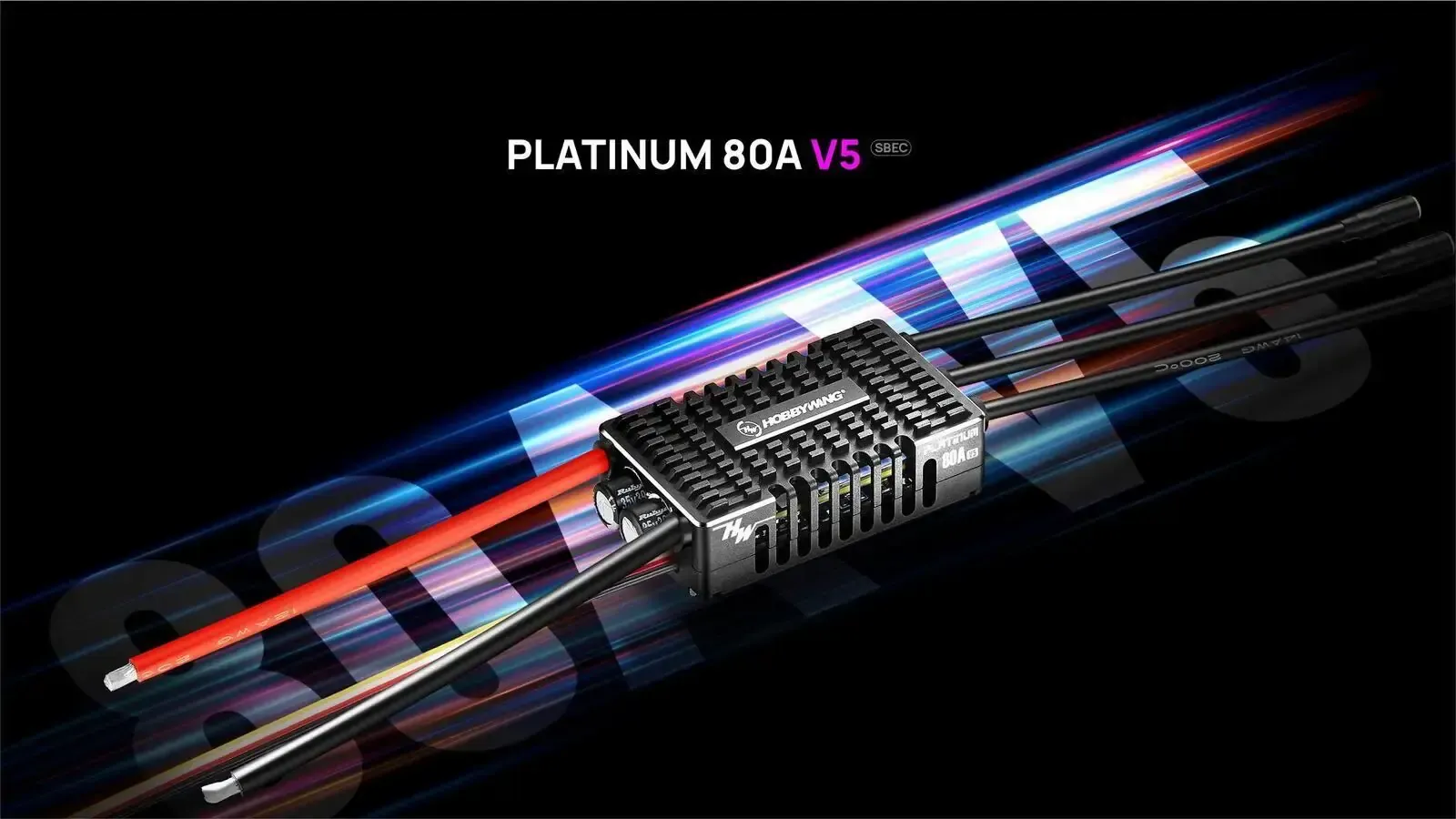

This is the Hobbywing Platinum 80A V5 Brushless ESC

Product Information

• Product Name: Platinum 80A V5
• Product Number: 30203201
• Type: Brushless (BL)
• High Voltage/Regular: Regular

Specifications

• Continuous/Peak Current: 80A / 120A
• Input Voltage: 3-8S LiPo
• BEC Output: Switch Mode: 5-12V, Continuous 8A, Peak 20A

Wires & Connectors

• Input Wires: Red - 12AWG - 100mm, Black - 12AWG - 100mm
• Output Wires: Black - 14AWG - 100mm (x3)
• Input Connectors: None
• Output Connectors: 3.5mm Gold Connectors (Female)

ESC Programming

• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• OTA Programmer: Supported
• Program Port: Separate Program Port

Firmware

• Firmware Upgrade: Supported

Telemetry Function

• Supported Systems: Mikado VBar, Futaba S.Bus2, etc.

Size & Weight

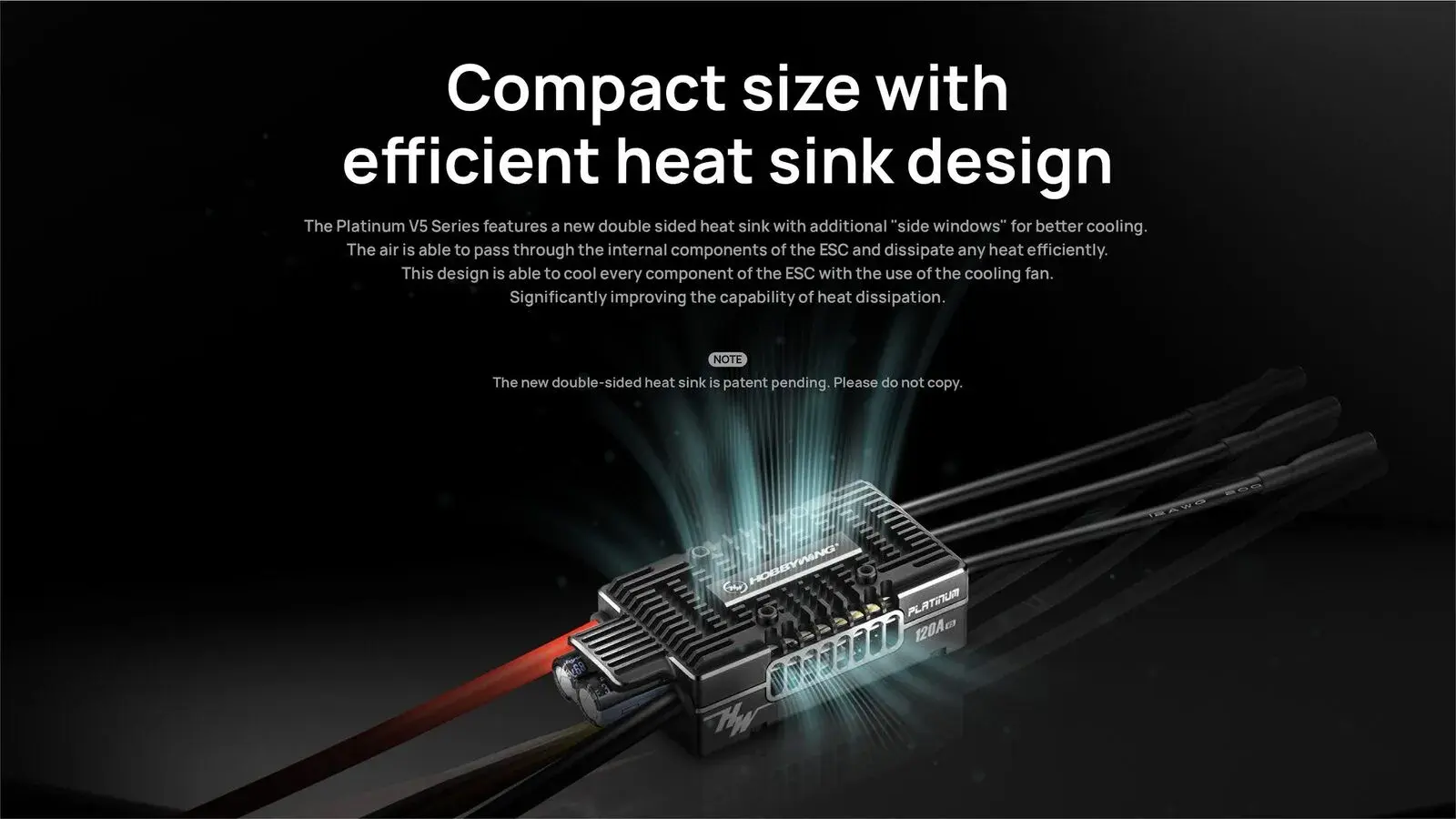

• Size: 60.5 x 33 x 17.6mm (without fan)
• Weight: 77.5g (with wires, no fan)

Application Scope

• Suitable for 325-420 class electric helicopters (main blade length 325-420mm) or fixed-wing aircraft.
