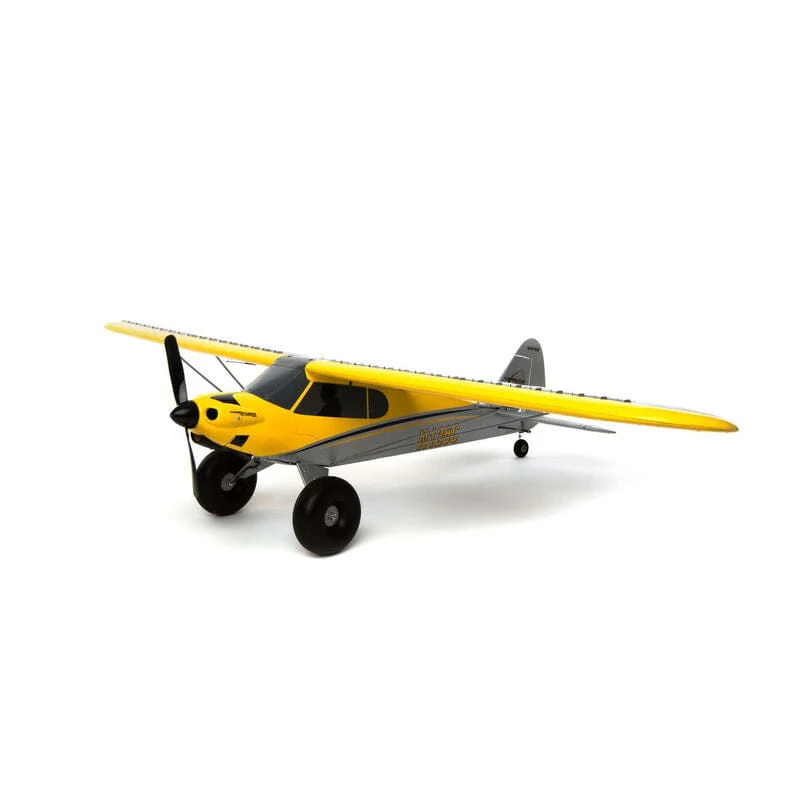

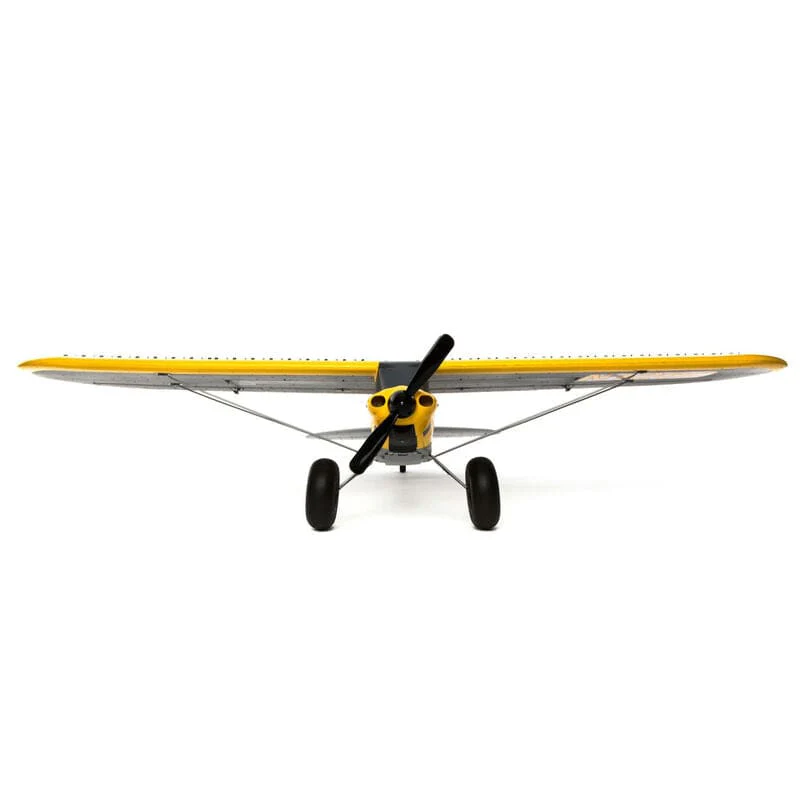

Hobbyzone Carbon Cub S2 RC Plane BNF Basic
This is a Hobbyzone Carbon Cub S2 RC Plane BNF Basic HBZ32500
OVERVIEW
The HobbyZone Carbon Cub S 2 is the most versatile, capable and easiest to fly scale RC airplane yet! It's equipped with SAFE and can easily be upgraded to SAFE Plus GPS-enabled technology, plus it now includes advanced Smart technology components.
Specifications
Charger Sold separately
Technology SAFE Technology
Propeller Size 9x6
Approximate Assembly Time Less than 1 Hour
Completion Level Bind-N-Fly Basic
Flaps Optional
Material EPO foam
Wingspan 51 in (1300mm)
Minimum Required Radio 4-channel, sold separately
Approximate Flight Time 5-7 minutes
CG (Center of Gravity) 2.4 - 2.7" (62 - 68mm) back from leading edge of wing at the root
Retracts No
Motor Size 480
Recommended Motor Battery 3S 2200mAh sold separately
Rudder Yes
Elevator Yes
Landing Gear Fixed main with steerable tail wheel
Length 34 in (865mm)
Transmitter Range Full
Minimum Speed Control 30A
Spinner Size 1.6 in (40mm) diameter
Wing Tube Length 16.1 in (410mm)
Wing Tube OD 0.39" (10mm)
Servos 2-aileron, 1-elevator, 1-rudder
What's in the Box?
(1) HobbyZone Carbon Cub S 2 Plane with:
(1) Brushless Outrunner Motor (installed)
(1) 30A Brushless ESC (installed)
(4) Servos (installed)
(1) Spektrum Flight Controller (installed)
(1) Spektrum 4650 Serial Receiver (installed)
(1) Product Manual
Needed to Complete
Full-range 6–7+ channel Spektrum DSMX®/DSM2® compatible transmitter
3S 11.1V 1300–2200mAh LiPo with EC3™ or IC3™ Connector
Compatible LiPo charger
