Hot Racing E Revo 2.0/X-Maxx/XO-1 Steel Mod 1 Steel Spur Gear (52T)

Product image 1
1 / 2

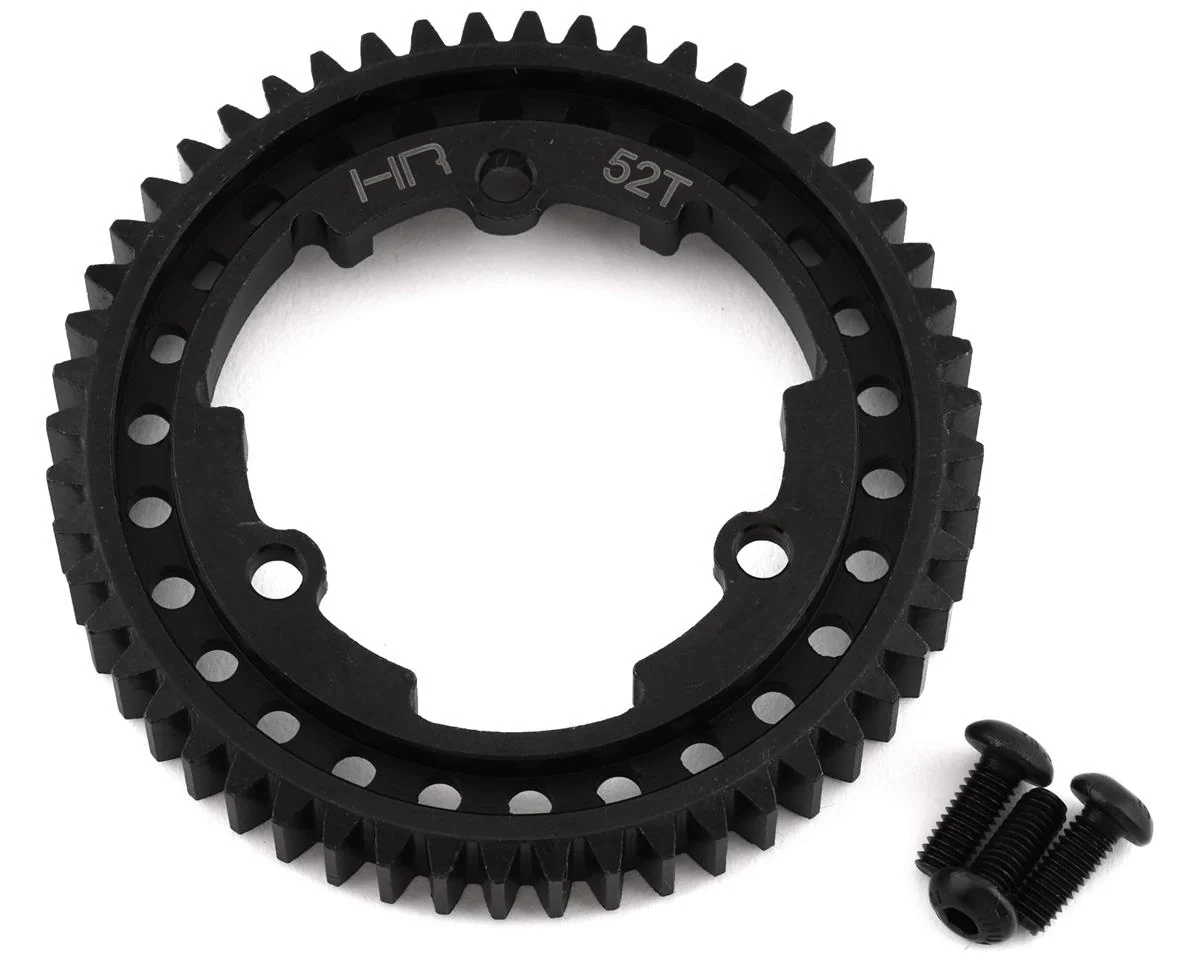

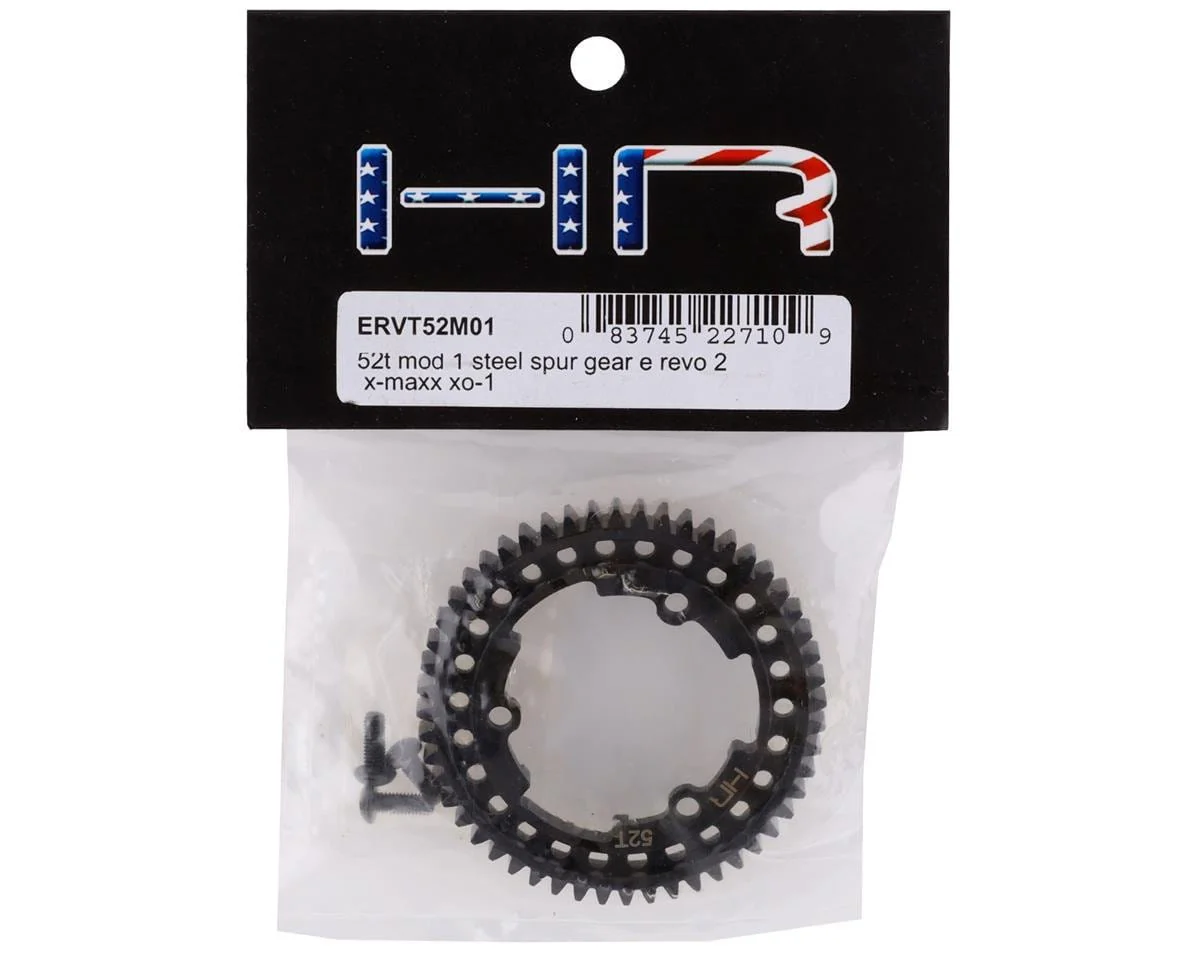

Hot Racing E Revo 2.0/X-Maxx/XO-1 Steel Mod 1 Steel Spur Gear (52T)

The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models. Choose from 50, 52 and 54 tooth options.

NOTE:
  • Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
  • With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
Features:
    • CNC machined hardened steel construction
    • Black oxide finished
    • Laser etched tooth count marking
    • Upgrade for factory plastic spur gear



Specifications:
Overall diameter: 52.8mm
Gear face width: 8mm

Includes:

  • One (1) mod 1 steel spur gear
    • $16.44

    Original: $46.98

    -65%
    Hot Racing E Revo 2.0/X-Maxx/XO-1 Steel Mod 1 Steel Spur Gear (52T)—

    $46.98

    $16.44

    Product Information

    Shipping & Returns

    Description

    The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models. Choose from 50, 52 and 54 tooth options.

    NOTE:
    • Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
    • With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
    Features:
      • CNC machined hardened steel construction
      • Black oxide finished
      • Laser etched tooth count marking
      • Upgrade for factory plastic spur gear



    Specifications:
    Overall diameter: 52.8mm
    Gear face width: 8mm

    Includes:

  • One (1) mod 1 steel spur gear
