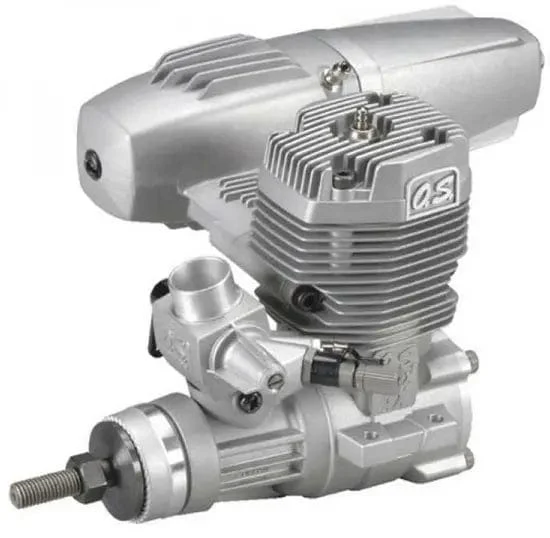

OS Engines MAX 55AX Nitro Aircraft Engine, .55 Size w/ E-3071 Silencer
This is a OS Engines MAX 55AX Nitro Aircraft Engine, .55 Size w/ E-3071 Silencer
The O.S. Max .55 AX Aircraft Engine with Muffler is better than ever, with an improved carburettor and muffler. You get the same phenomenal power, with the convenience and safety of a rear angled needle valve on the carb and a squared-off muffler for easier cowling installation. If you want .50 scale power that fits conveniently in .40 size planes, get the 55AX and get flying!
Features
- Same mounting dimensions as the O.S. Max .46 AX
- Power Box positionable muffler
- Angular head design offers increased surface area for better cooling
- 40J Carburetor with diagonally placed Needle Valve eliminating Remote Needle Valve placement
Product Information
This is the O.S. Max .55 AX Aircraft Engine with Muffler. Advanced Bi-Metallic Liner process uses a double layer of plating material rather than one thick layer. This helps the metal bond to the cylinder and makes the plating more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression and longer life.
Includes: O.S. Max 55 AX ABL Aircraft Engine with E-3070 Muffler, 40J carburetor, #8 glow plug, illustrated instruction manual, 3.5" (90mm) long needle valve extension cable and two 3x35mm muffler screws
What you need
- Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
Specs
Displacement .545 cu in (8.93cc)
Bore .906" (23mm)
Stroke .846" (21.5mm)
Practical RPM 2,000-17,000
Power Output 1.75 PS, 1.68 HP/16,000 RPM
Weight w/o muffler 14.29oz (405g)
Weight w/ muffler 18.52oz (525g)
Recommended Props 12x7-8, 13x6-7
Crankshaft thread size 1/4-28
Distance/remote needle to end of crankshaft 4.7" (119.4mm)
Distance from center of engine to drive hub 2.4" (60.4mm)
Distance from center of engine to end of crankshaft 3.4" (87.6mm)
Distance/crankshaft center to muffler exhaust outlet 3.9" (100.5mm)
Height from crankcase bottom to top of cylinder head 3.3" (85.2mm)
Height/crankshaft center to top of cylinder head 2.6" (67.4mm)
Width including mounting tabs 2" (50.8mm)
Width not including mounting tabs 1.4" (35.6mm)
Width between mounting holes same side .69" (17.5mm)
Width between mounting holes opposite side 1.7" (43.2mm)
Diameter of muffler body 1.5" (38.1mm)
Angle of muffler in relation to engine 4°
High Speed Needle 2 turns out from fully closed
Low Speed Needle 3mm gap between the needle and spray bar at full throttle (looking down the neck of the carb)
Original: $195.19
-65%$195.19
$68.32Product Information
