Features:
Metal Gear train for extended life and durability.
Special design for glider applications.
All aluminum case for secure mounting.
Capable of 2S Operation

Specifications:
Torque @6v - 8.0kg/111.1oz-in
Torque @7.4v - 11.03kg/153.1oz-in
Speed @6v - 0.18 sec/60 deg
Speed @7.4v - 0.15 sec/60 deg

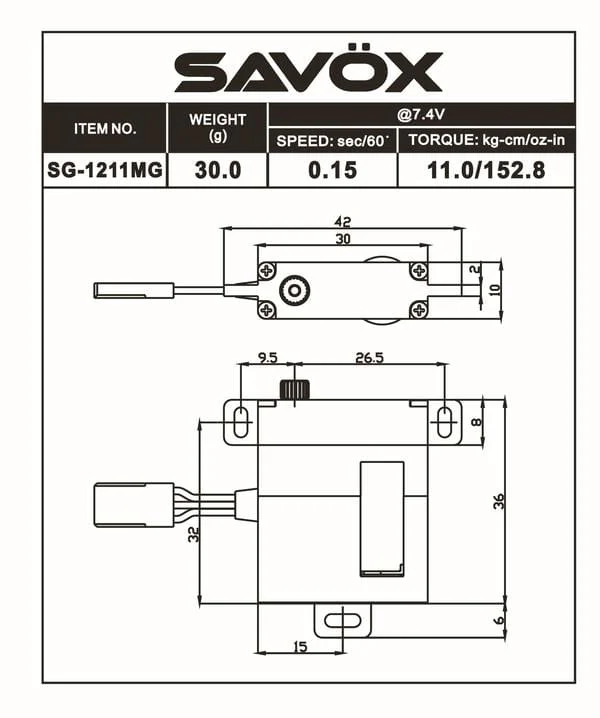

Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
Weight: 29g

Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 180mA @7.4V
Stall Current (at locked): 3000mA @6.0 V, 3700mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 165° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
