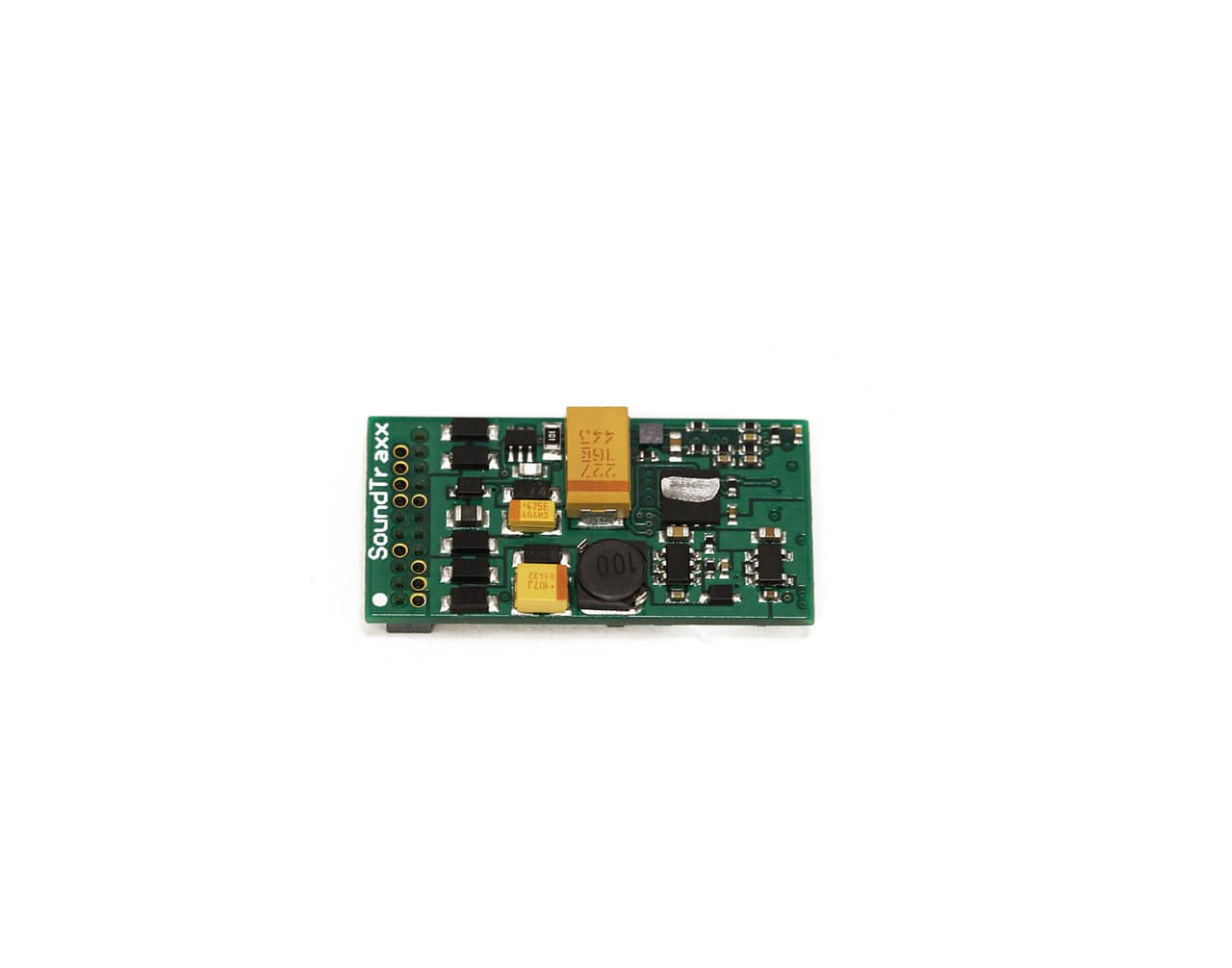

Soundtraxx 881006 ECO-21PNEM Econami Sound Decoder, NEM 21-Pin, Steam Locomotives
This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket.
The ECO-21PNEM can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Product Specifications
Dimensions: 30.5 x 15.5 x 6.55mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 12
Original: $93.98
-65%$93.98
$32.89Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket.
The ECO-21PNEM can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Product Specifications
Dimensions: 30.5 x 15.5 x 6.55mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 12
