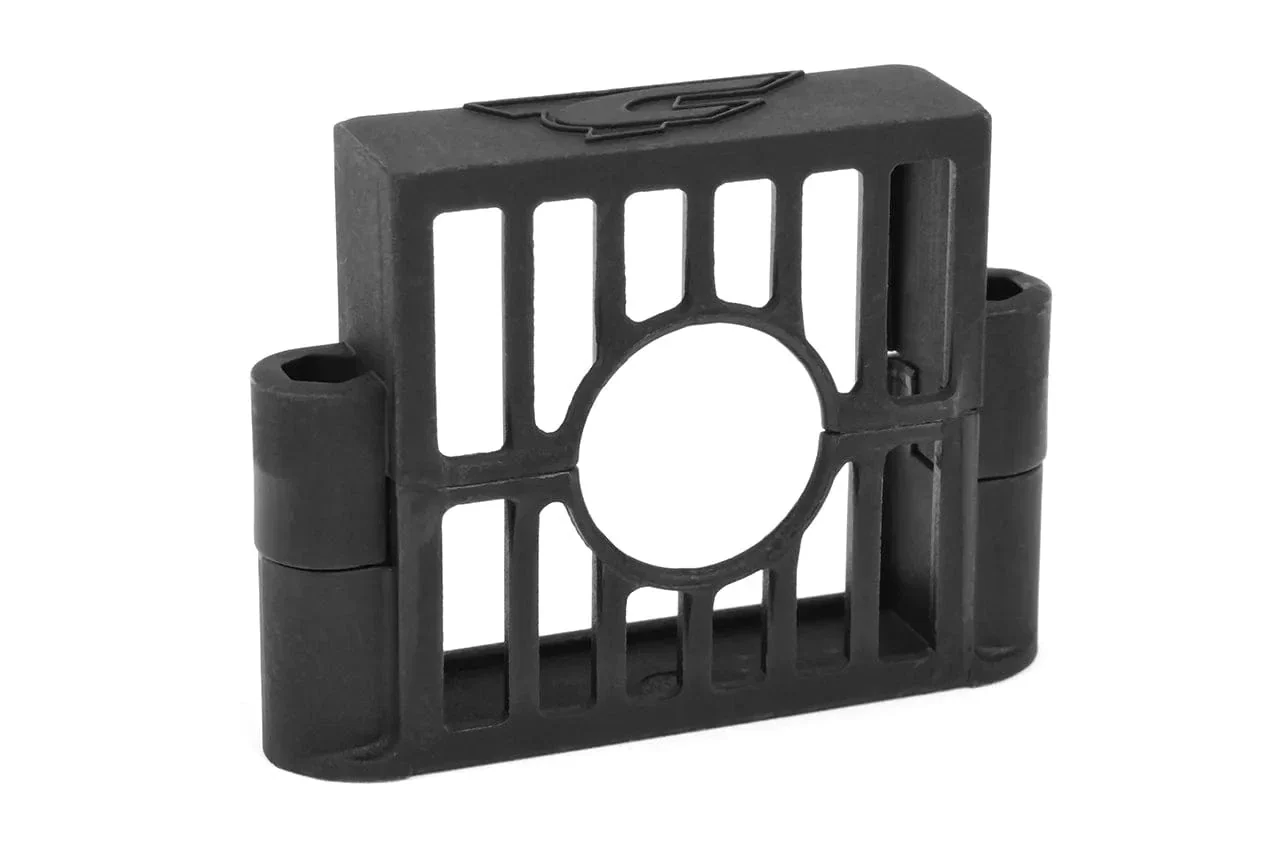

This is the Team Corally Fan Holder for fan 40 mm - Composite - 1 set [C-00180-224]

Team Corally - Fan Holder for fan 40 mm installation:
Two holes with Ø3mm, 49mm apart, must be drilled into the side pan (C-00180-242) on the motor side.
The distance to the motor should be about 5mm.
The lower fan bracket can be used as a template for drilling the holes.
Please then lower the holes for countersunk screws.

Required accessories:
Hex Flat Head Screw M3x35
Steel Nylstop Nut M3
Hex driver allen 2mm
Hand drill M3
Countersink drill bit

TC Car Parts - Compatibility
C-00165 (Dementor 2020)
C-00171 (Punisher 2021)
C-00166-R (Jambo 2022)
C-00166 (Jambo 2021)
C-00176 (Muraco 2021)
C-00172 (Kronos 2021)
C-00173 (Kronos XTR 2021)
C-00176-R (Muraco 2022)
C-00170 (Kronos 2020)
C-00167 (Dementor 2021)
C-00172-R (Kronos 2022)
C-00175 (Shogun 2020)
C-00167-R (Dementor 2022)
C-00274 (Kagama)
C-00185-R (Radix6 2022)
C-00177 (Shogun 2021)
C-00191 (Sketer)
C-00181 (Python 2020)
C-00177-R (Shogun 2022)
C-00186 (Radix4)
C-00185 (Radix6 2021)
C-00182-R (Python 2022)
C-00273 (Kronos XTR 2022)
C-00186-R (Radix4 2022)
C-00182 (Python 2021)
C-00288 (Asuga XLR)
C-00285 (Spark6)
